最大視訊輸入通道數
Maximum 4 channel synchronized recording
HDMI/ VGA/:2 channels
Full HD network camera:4 channels
視訊輸入模式
HDMI: 480i~1080p/60fps
VGA Video: 480i~1080p/60fps
VGA PC: 640*480~1920*1080
最大音訊輸入通道數
3.5mm Stereo: 2 channels
內部存儲
Built-in 1TB hard disk (Only for VS-LC102)
主輸出模式（最大）
HDMI / VGA : 1080p/60fps
顯示佈局

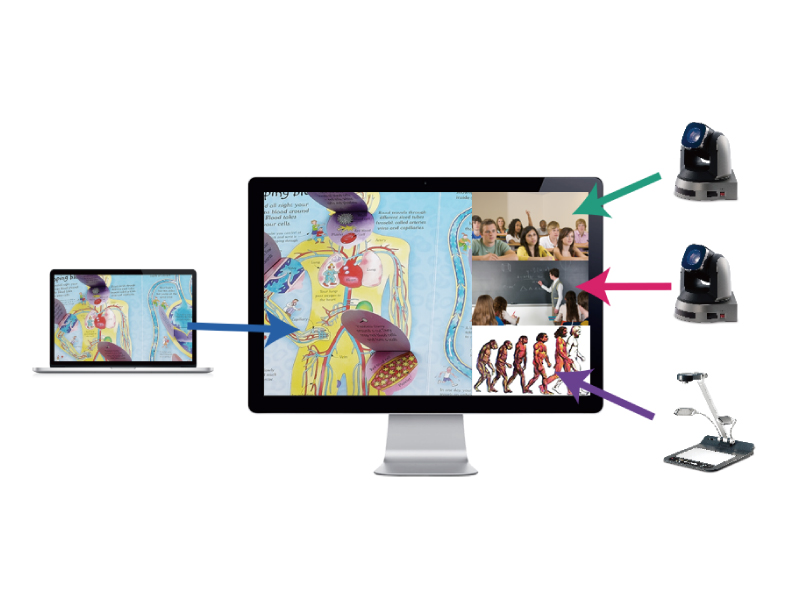

Full screen/ picture-in-picture/
multi-channel split screen, up to nine layouts
錄製佈局
Multi-View streaming, up to nine layouts
索引（關鍵字標記）
Automatic and manual index insertion
錄製期間自動插入徽標
Yes, through web-based back stage management setting
從捕捉視覺站共享即時流
Yes, Multicast
網播
Support Youtube Live, UStreaming, Adobe Media server
按索引選擇
Yes, browse playable content through knowledge point index
課後編輯
Yes, through web-based back stage
發佈索引點編輯
Yes, through web-based back stage to add and delete index points
自動徽標標題和結束插入
Yes, through web-based back stage to insert logo title and endings when exporting lecture video
遙控
Yes, included with purchase
外部控制
Yes, supports RS-232 interface port
尺寸
354mm(L) x 187.96mm(W) x 45.97mm(H)
13.94 inch(L) x 7.4 inch (W) x1.8 inch (H)
車站控制
Web-based back stage
語言
English / Simpli ed Chinese / Traditional Chinese
配件
Quick Installation Guide
Remote Control
Power Adapter
Battery x 4
DIDO connector
