What is Dante AV-H?
Dante Audio is a watchword for high performance audio networking with thousands of interoperable products in use around the world. Dante AV H now allows video products to become part of the Dante network, benefiting from tight integration with Dante audio and all the familiar Dante management tools.
Lumens' support for the format gives users a powerful new tool for video production, AV distribution, video conferencing and lecture capture. Suitable for use on 1GbE and 10GbE networks, Dante AV-H is interoperable with all Dante-enabled products, making it simple to integrate into the existing AV infrastructure.
Benefits of Dante AV-H
Lumens Dante AV-H can be used to create ground-breaking workflows that deliver single USB-C BYOM solutions with a reduction in equipment, a minimization of encoding stages and a single control interface. Compared with traditional approaches to AV transmission, Lumens Dante systems are significantly more cost-effective, easier to manage and require far less technical support. Key benefits include:
- Audio/Video Management
As part of the Dante family of formats, the integration of audio and video are unsurpassed. Synchronization is a given, and independent routing of sound and pictures using Dante Controller could not be easier. With Dante AV-H, Lumens integrates cameras effortlessly with audio systems, video conferencing platforms and wireless sharing technology.
- Low latency, high quality video transmission
Dante AV-H is a compressed H.264 and H.265 format which achieves a balance between quality, latency and cost. The result is a 10-50Mb/s 4:2:0 format that achieves low bandwidth, high quality, low latency video transmission. Supporting video up-to 4K 60P, it is particularly suited to use in unified communications, video conferencing, and event recording and streaming.

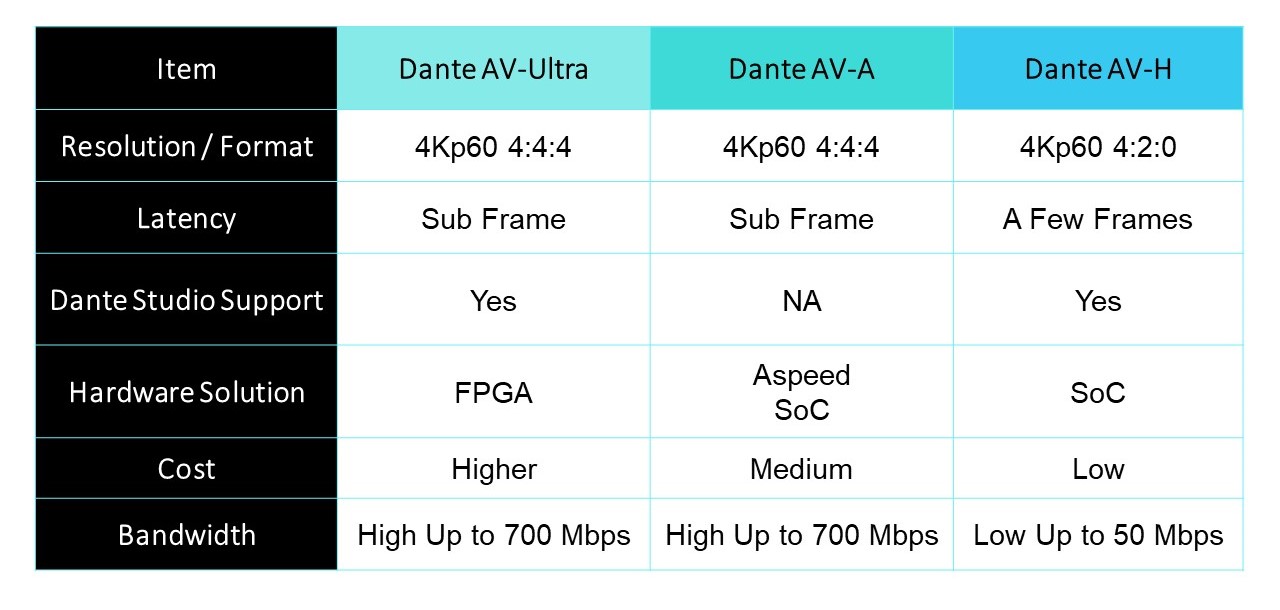

Comparing Dante AV-H to other Dante video formats
- Centralized Management and Routing
Residing on a local area network, administrators can employ Audinate apps such as Dante Controller to control Dante AV-H products, including the routing of signals between Lumens cameras, encoders, decoders and any end point.
- Security
Security is at the heart of Dante AV-H. It is protected by AES-256 encryption and user access control. This enables administrators to install Lumens Dante products with confidence and enforce data security policies across the organization.
- System-wide Interoperability
With hundreds of manufacturers supporting Dante audio, Dante AV-H products integrate seamlessly on the LAN. Because of this, the network is instantly scalable: users can simply add Lumens cameras, encoders and decoders to the Dante network along with third-party Dante microphones, speakers, DSPs and digital mixers.
Lumens Dante AV-H Technology

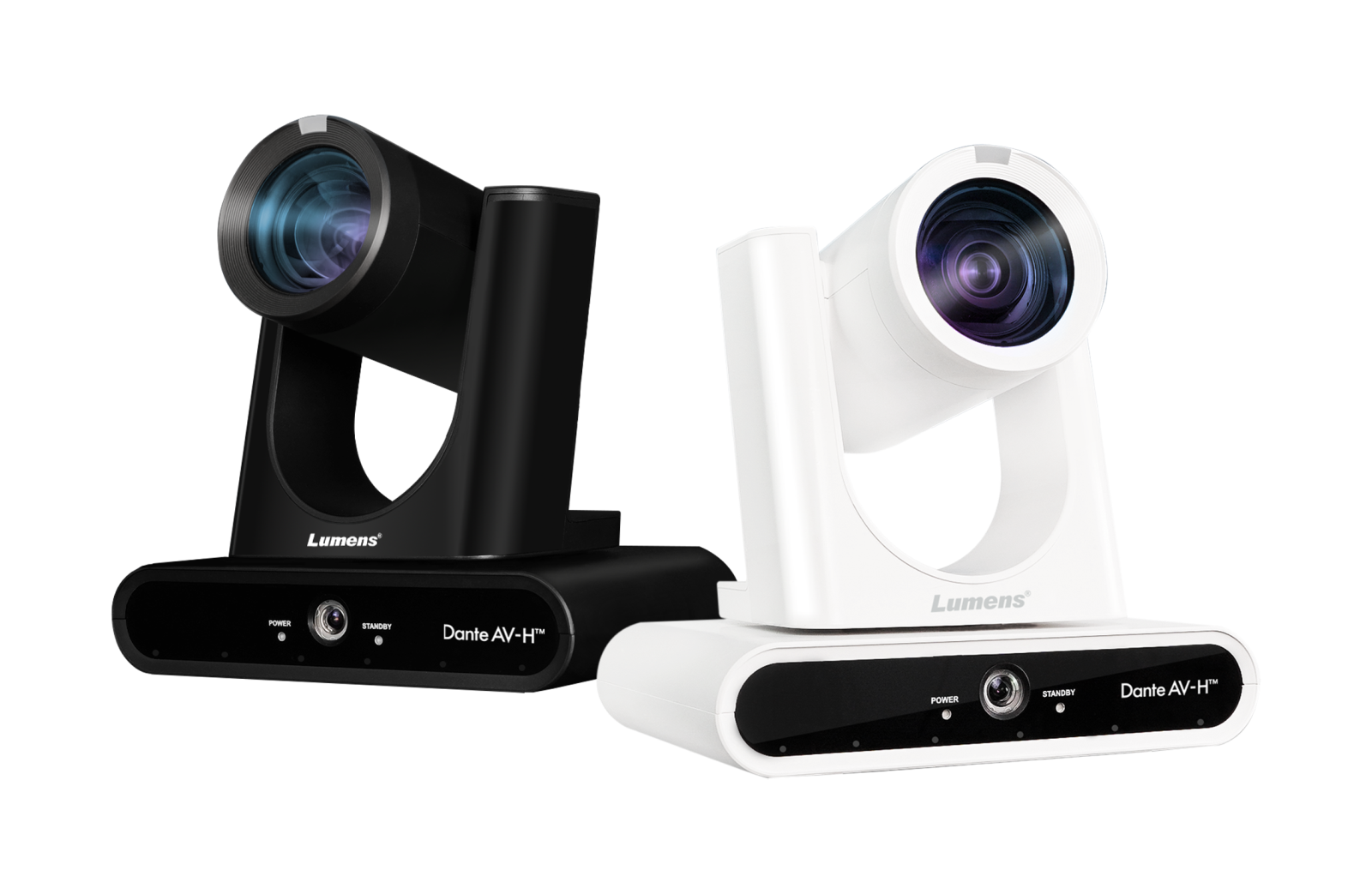

- PTZ Camera
- USB Bridge

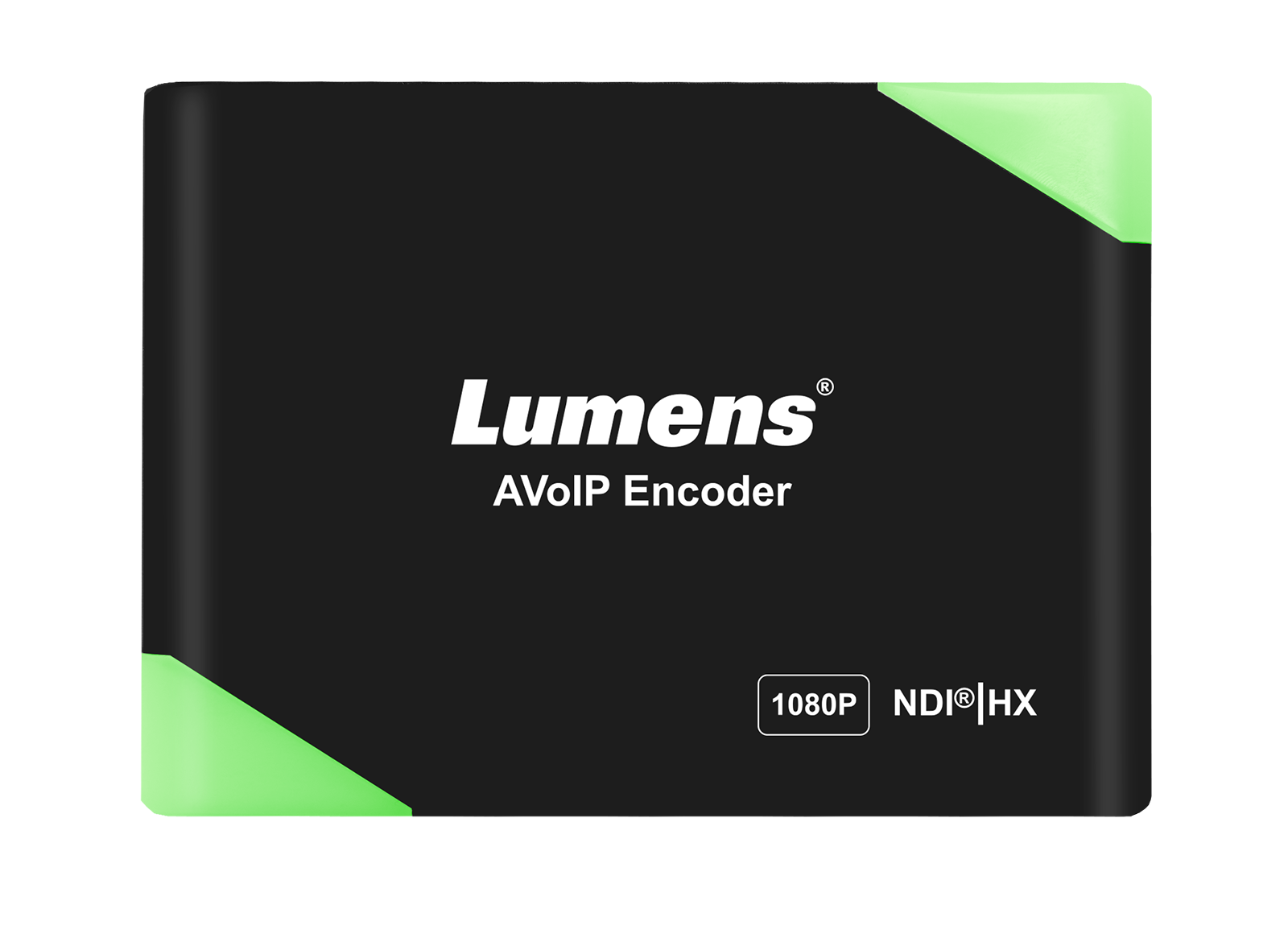

- Lumens OIP-N40E HD with Dante Audio and Dante AV-H encoding and decoding, HDMI in and USB in.
Applications
This efficiency, flexibility and scalability means that Dante AV-H is ideally suited to organizations in financial services, education, the public sector, medical environments and the commercial world, where communicating securely is of paramount importance.
- Video Conferencing: Bring in-room video directly into UC applications including Teams or Zoom from Dante AV-H cameras using Dante Studio. Dante AV-H is easy to integrate with Dante-enabled audio conferencing solutions, including Microsoft Teams and Zoom.
- Lecture Capture: video from Dante AV-H cameras can be brought into CMS platforms like Panopto or Kaltura or UC software for Hybrid learning using Dante Studio software or Dante AV-H decoders.

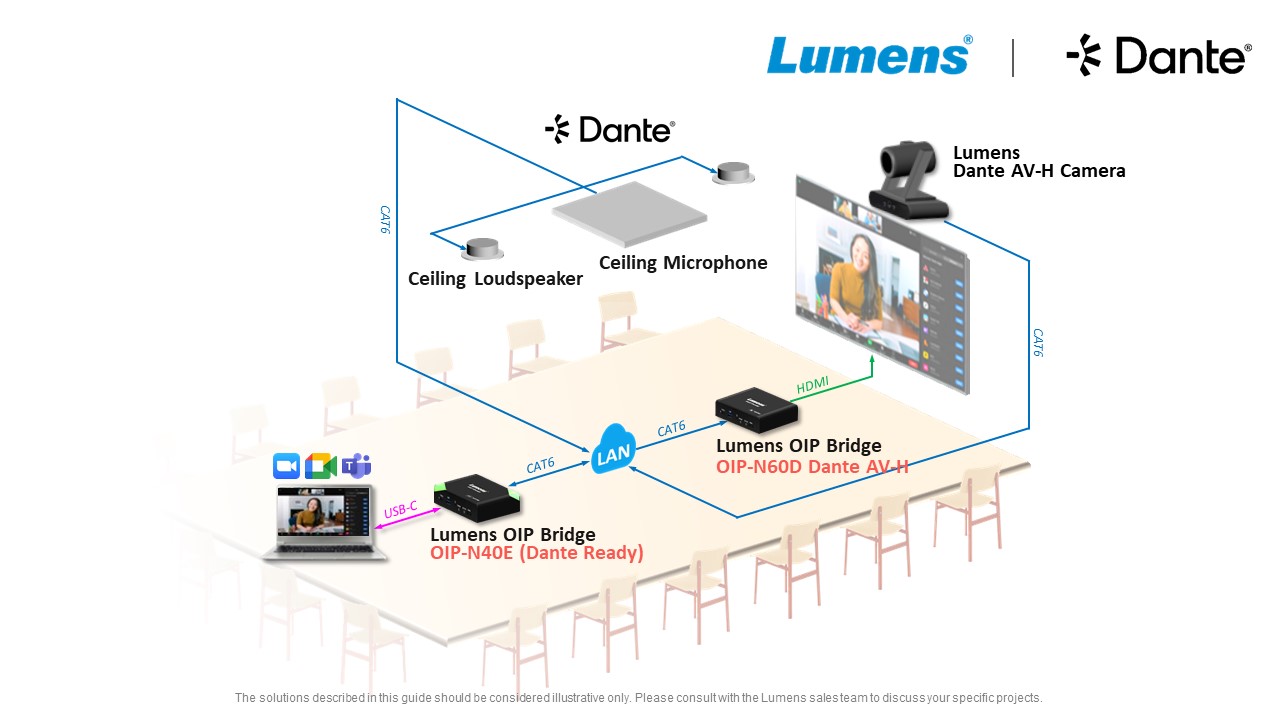

Integration Diagram

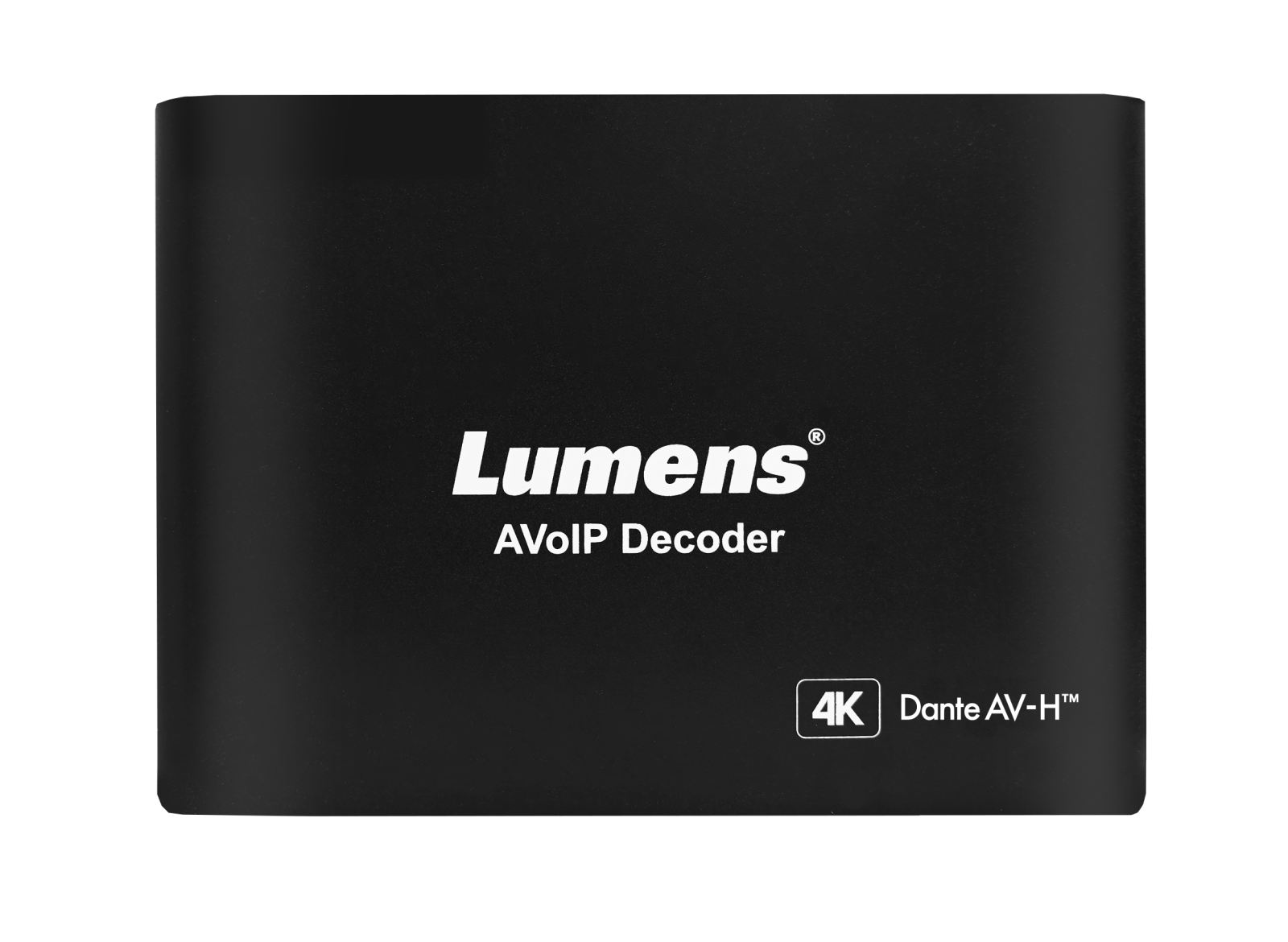

Lumens Dante Products
For more information about Dante, please visit: www.getdante.com
Need help getting started?
