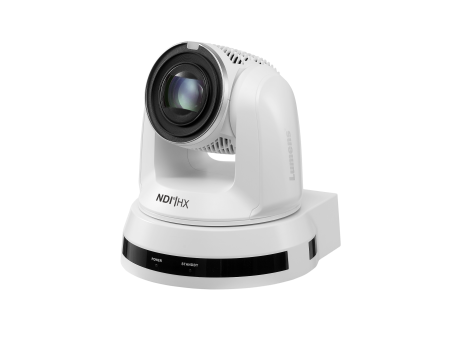

VC-A61PN

4K NDI®|HX PTZ Camera
An NDI|HX-ready HD and UltraHD PTZ camera with 30x zoom, 3G-SDI, HDMI, and IP streaming.


  • Delivers UHD at 30fps and 1080P at 60fps
  • Supports Newtek’s NDI|HX* for video networking and low latency IP production
  • Powerful 30x zoom lens, with 68 degrees horizontal field of view at its widest setting
  • Easy installation: delivers video output via Ethernet, HDMI, and 3G-SDI simultaneously
  • 5-year warranty as standard

Contact Sales

*NDI® is a registered trademark of Vizrt Group.


Video over IP

VC-A61PN supports NDI®, the popular video networking format. Once connected to the local area network, it is available to the production desk as an NDI® video source, controlled by software or a dedicated hardware device. The bandwidth requirement for an NDI®|HX HD 30fps video stream with audio and control data is minimal, between 8 and 20 Mb/s. Using this highly efficient format, multiple cameras can be used to distribute high-quality, low latency video without overwhelming the IP network.

*NDI® is a registered trademark of Vizrt Group.



Future-proofing

With a choice of 4K or 1080p output, the Lumens VC-A61PN is ideal for all your production and AV requirements. The CMOS sensor is partnered with a high brightness lens which enables the camera to excel in virtually every lighting condition. It makes the VC-A61PN a great PTZ, whether installed in a studio, theater, conference hall or sports center.

Optical Performance

The 30x lens allows users to zoom in close from the back of a venue or shoot wide to capture a full conference panel thanks to its 68 degree horizontal viewing angle. For extreme close shots, a digital zoom can be deployed, while 3D noise reduction maintains clear pictures and excellent results.

Video Workflow Flexibility

Featuring HDMI, 3G-SDI, and Ethernet outputs, the VC-A61PN can be integrated with almost any AV, broadcast, or IP workflow. While all models deliver simultaneous H.264 and HEVC streaming, the inclusion of NDI®|HX adds support for fast integration with NDI® infrastructures. Such a broad range of video outputs means that the camera is ready to fulfill a wide variety of roles – as a PTZ camera source for lecture capture, live event production, or video streaming direct to YouTube or Facebook.

AV Integration and Control

Lumens VC-A61PN supports both PoE (Power over Ethernet) and a 12v DC input. It also features dedicated RS-232 in-out ports, RS-422 and Ethernet-based control protocol support (including Crestron, Extron, Visca, Pelco D, NDI and Onvif). This gives the camera an unparalleled level of flexibility: whatever the video workflow, whatever the AV integration, VC-A61PN is ready to take the complexity out of camera installation and management.

5 Year Warranty

Lumens offers a 5-year warranty with all its products as standard.

*The warranty policy may be different depending on the sales region, please contact your local salesperson.





Watch the Video

Support

Contact Sales     Service Request

Specs Details

Download Product Documents

Documents Upload Time
VC-A61PN Software 2022-12-23
NDI Camera Accessories Compatible List 2022-12-23
VC-A61PN Datasheet 2022-06-16
VC-A61PN User Manual 2021-08-02
