Sensor
1/2.5" 8.57MP CMOS
Video Format
2160p : 59.94 / 50 / 29.97 / 25
1080p : 59.94 / 50 / 29.97 / 25
720p : 59.94 / 50 / 29.97 / 25
1080i : 59.94 / 50
Video Output (HD) Interface
3G-SDI / HDMI / USB / Ethernet
Horizontal Viewing Angle
68°
Vertical Viewing Angle
38.3°
Diagonal Viewing Angle
78°
Focal Length
4.6mm ~ 135mm
Shutter Speed
1/1 ~ 1/10,000 sec
Minimum Object Distance
1.5m (Wide / Tele)
Minimum Illumination
0.1 lux (F1.6, 50IRE, 30fps)
Focus System
Auto / Manual / Smart AF
Gain Control
Auto / manual
White Balance
Auto / manual
Exposure Control
Auto / manual / Smart AE
Color Space
Standard / BT.2020 / REC.709
Panning Angle
+170° ~ 170°
Tilting Angle
+90° ~ -30°
HDMI / 3G-SDI
2160p 59.94 / 1080p 59.94
IP Stream
HEVC 4K 59.94fps
H.264 1080p 59.94fps
H.264 640 x 360 29.97fps
IP Compression
HEVC / H.264
USB Output
H.264 4K 30fps
MJPEG 1080p30
USB Compression
H.264 / MJPEG
IP Protocol
RTSP / RTMP / RTMPS / MPEGTS
/ SRT
Audio Input
Line In / MIC In
Audio Output
Ethernet / SDI / HDMI / USB
Audio Compression Format
IP : G.711
USB : PCM

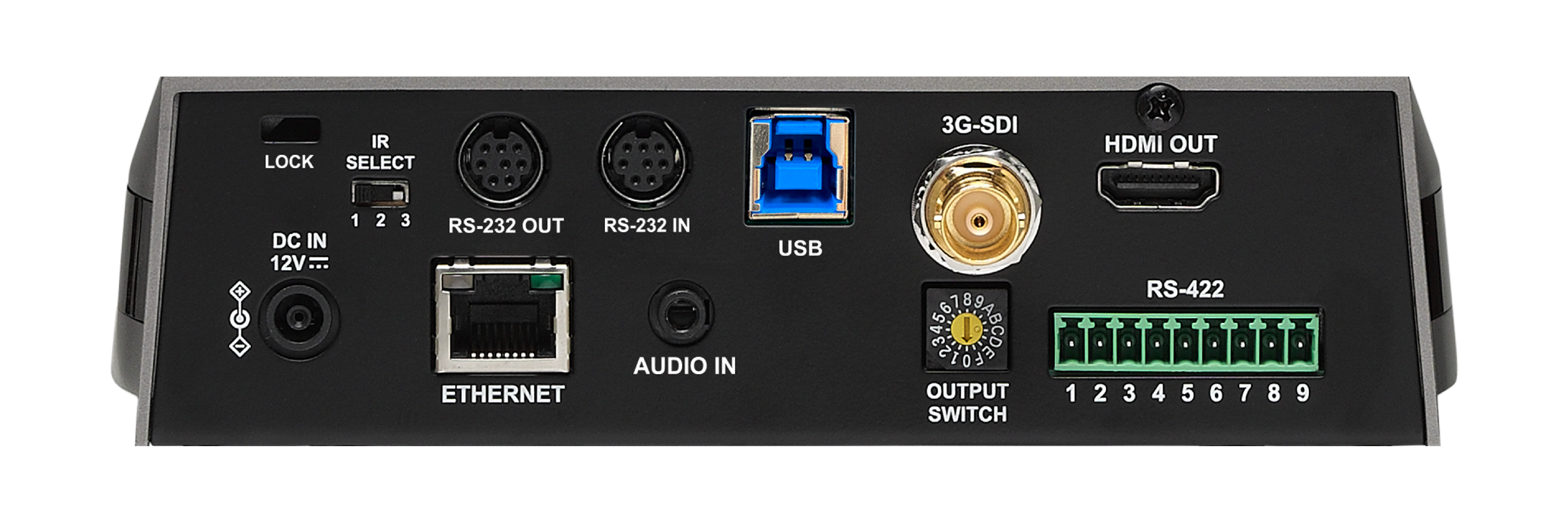

Interface
RS-232 / RS-422 / Ethernet /
USB / Remote
Protocol
VISCA / VISCAIP / PELCO D /
ONVIF / UVC / UAC
Power consumption
PoE : 18W
DC In : 16W
Dimension
6.9” x 7.5” x 7.3”
(174 x 190 x 187 mm)
