Video Format
2160p : 60 / 50
2160p : 30 / 25
1080p : 60 / 50 / 30 / 25
720p : 60 / 50 / 30 / 25
1080i : 60 / 50
Video Output (HD) Interface
HDMI / Ethernet / 3G-SDI / USB
Horizontal Viewing Angle
59.2°
Vertical Viewing Angle
33.3°
Diagonal Viewing Angle
67.9°
Focal Length
7.1 ~ 213 mm
Shutter Speed
1/25 ~ 1/10,000 sec
Minimum Object Distance
Tele:1.5m Wide:1m
Minimum Illumination
0.5Lux (F1.6, AGC ON)
Focus System
Auto, manual
Gain Control
Auto, manual
White Balance
Auto, manual
Exposure Control
Auto, manual
Video Format
2160p : 60 / 50
2160p : 30 / 25
1080p : 60 / 50 / 30 / 25
Horizontal Viewing Angle
85.1°
Panning Angle
+170 ~ -170°
Panning Speed
0.1°~100°/sec
Tilting Speed
0.1°~ 60°/sec
HDMI/3G-SDI
2160p 60 / 1080p 60
IP Stream
PTZ Camera
Stream 1 : 2160p 60 fps
Stream 2 : 720p 30 fps
Panoramic Camera : 2160p 60fps
IP Compression
H.264 / HEVC(H.265)
USB Compression
H.265(HEVC) / H.264 / MJPEG /
YUV2 / NV12
IP Protocol
RTSP / RTMP / RTMPS / SRT
Audio Output
Ethernet / USB / HDMI / SDI
Audio Compression Format
AAC / PCM

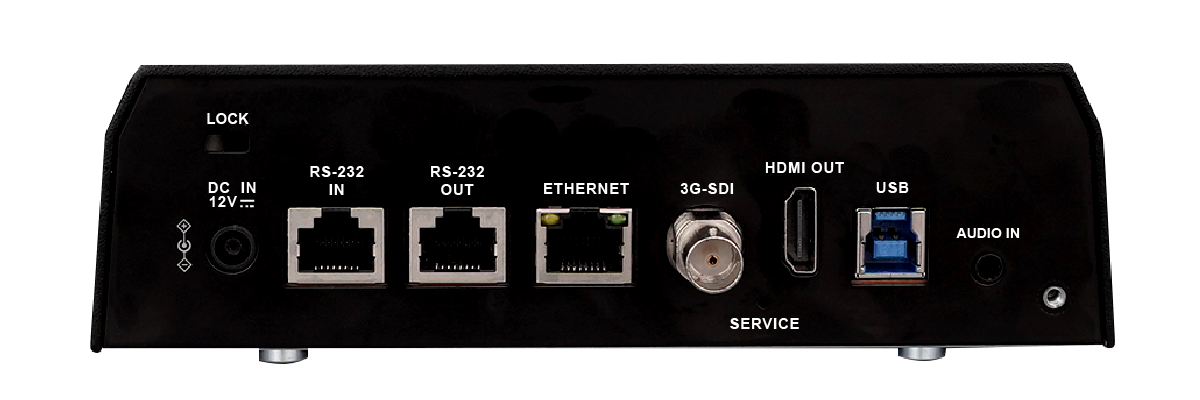

Interface
RS-232 / Ethernet / USB / Remote
Power consumption
PoE: 26W
DC In: 25W
Dimension
6.9" x 7.8" x 7.3"
(174 x 197 x 187 mm)
* Digital Zoom only works with HDMI/SDI at 1080p/720p resolution
